AS100/200/300 Antenna splitter

Characteristic
·This is a comprehensive coverage of the UHF antenna splitter, and its transmission signal from a transmitting antenna transmission to multiple receivers, is a multi-channel system.
·Stability effective range of up to 400 meters.
·TAN3000 can also quickly released RF signal to the receiver.

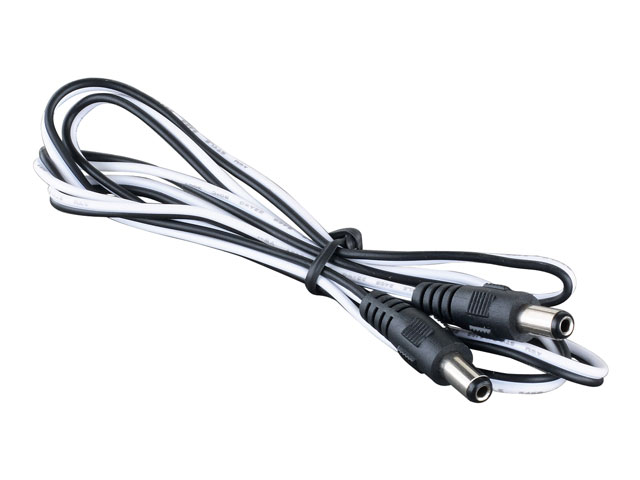

·DC established distributor, to provide four DC 12V power supply to the receiver.
·A separate TAN3000 can provide four wireless receiver

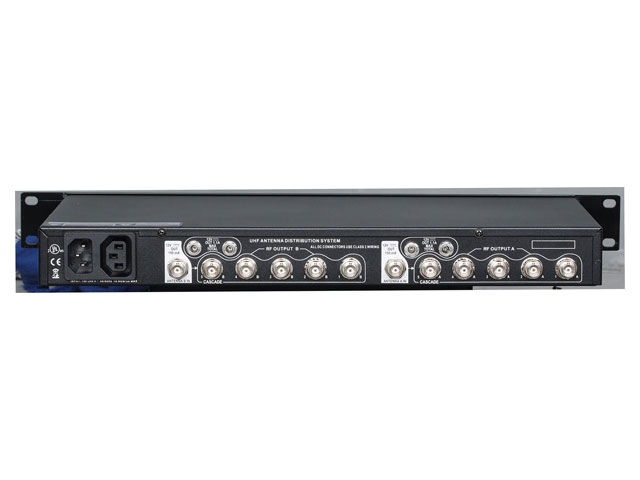

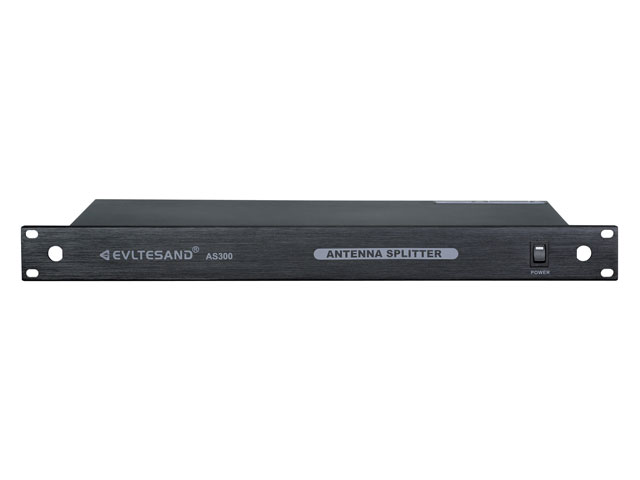

AS300 Antenna Distributor

Technological parameter
Frequency range: 470-870 MHz
RF output level (gain): -0.5 to 3dB
The third designated resistance rate: 24 dBm
Impedance: 50 Ohm
Input voltage :90-260V switching power
Output voltage :12-18V, 4 Connectors
Antenna Surge voltage: 12-18V
Size: 250*480*45mm (standard 19''and 1U case)
Packing size：610(W) x 90(H) x 310(L)mm
Weight: 2.15 kg

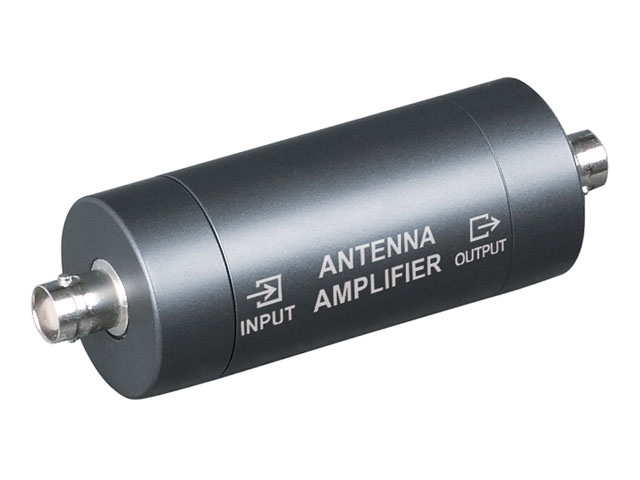

AS100 Antenna amplifier

Frequency response of: 470-870MHz
Gain: 10dBi
Hybrid power: 50W
N joints or soft for the
Size (mm): 70 × 25 × 25
Weight (kg): 0.1

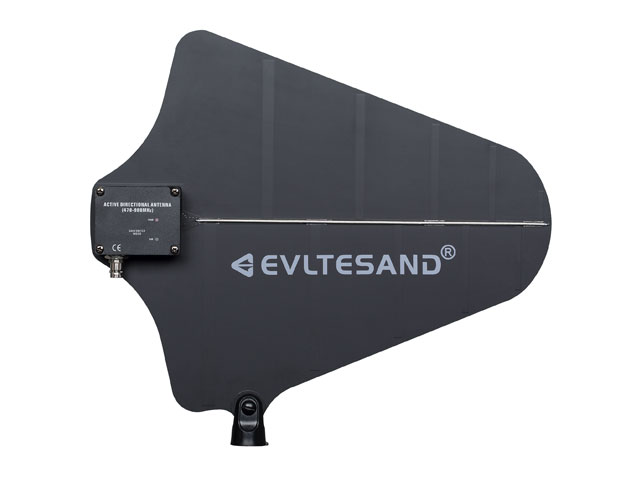

AS200 Directional antenna

Frequency response of: 470-870MHz
Gain: 10dBi
The level of refraction width  110°
Vertical width: 30°
Hybrid power:50W
N joints or soft for the
Size (mm): 220 × 190 × 45
Weight (kg): 0.8

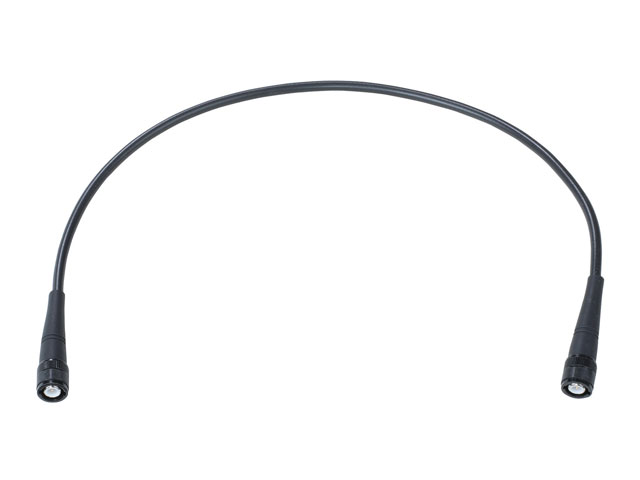

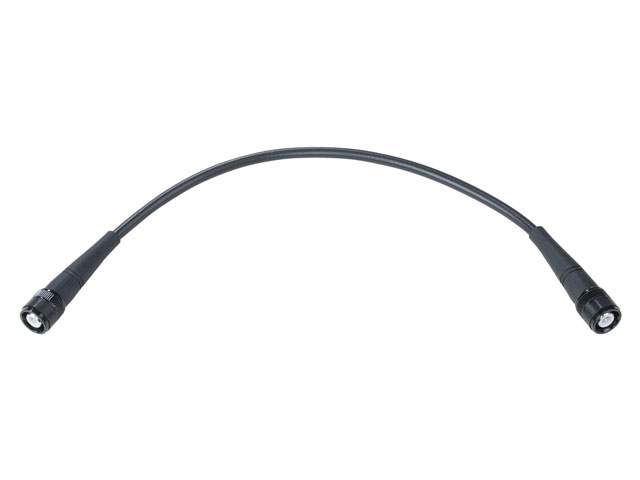

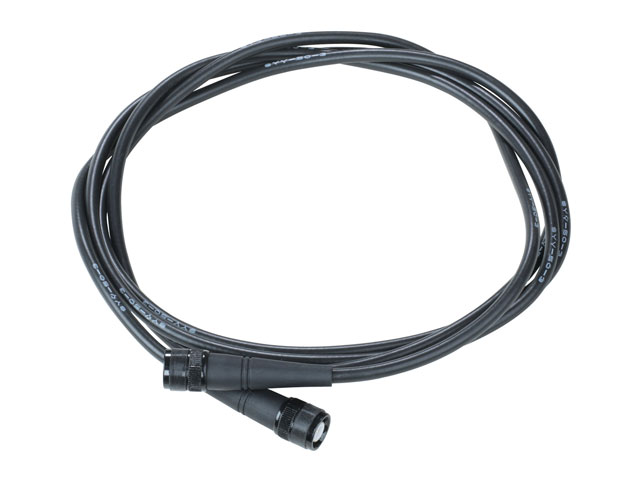

Cable x 4

Cable x 4

Cable x 4

Cable x 2
